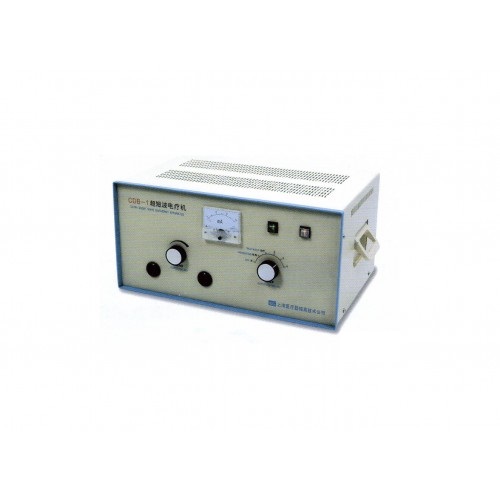

Shortwave Diathermy CDB-1

Short wave diathermy apparatus Model CDB-1 is one of the basic devices of physical therapy. The use of high frequency field formed by the current and plate electrode enables the body temperature around the treated part to be raised so as to cure rheumatism, precipitate , enhance the metabolism of human tissues, recover the dunction of nerves and vessels, and relieve pains and spasm. it can restrains growth of bacterial and promote absorption of surplus body liquid, dephlogistication and detumescence, It is also effective for heal of wounds and treatment of wound infection and other various acute and malignant inflammation. The sustem is of desk-type, stable is performance , even in heat and easy to operate.

Specification:
l Maximum output power: 200w
l Working frequency: 40.68MHZ
l Main voltage: 220V, 50HZ
l Consumption power: 700w
l Volume: 490*330*240mm
l Weight:19kg

Accessories:
Rectangular plate electrode:
l Large: 290*200mm 1pc
l Middle: 214*148mm 1pc
l Small: 150*100mm 1pc
Electrode output line : 1pc
Cable cusion:
l Large: 1pc
l Middle 1pc
l Small 1pc
Measuring neon tube 1pc
Power cord 1pc
