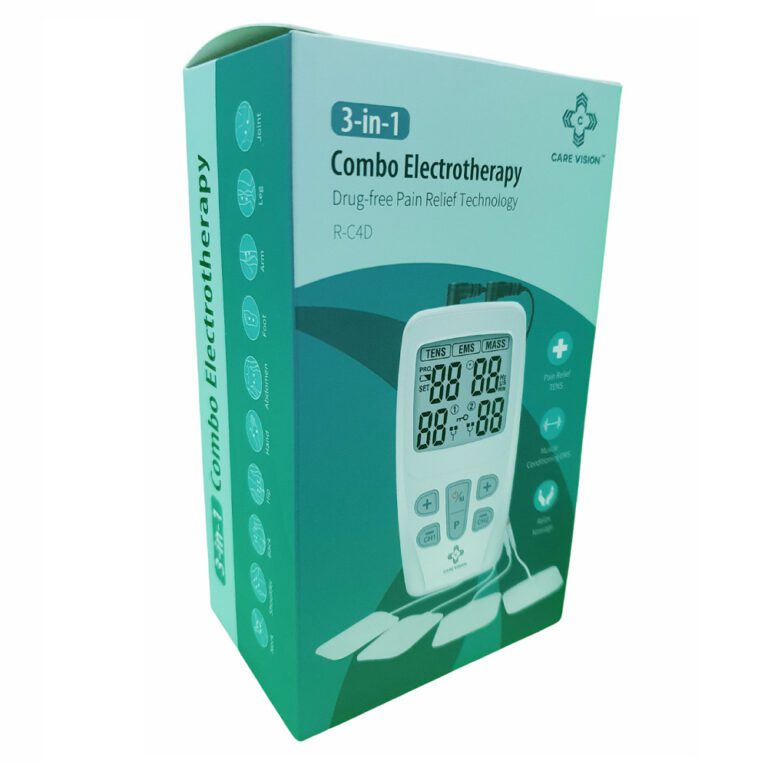

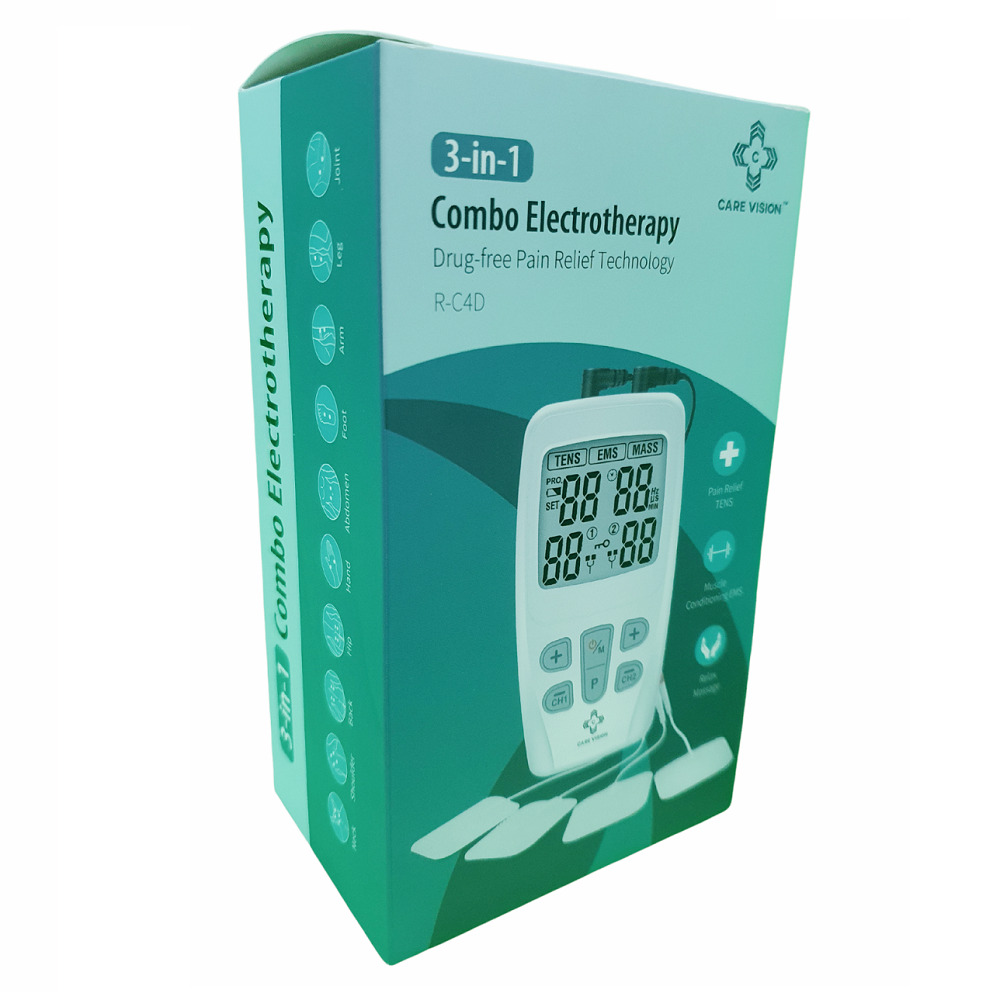

Care Vision TENS

Care vision TENS is a combo unit of TENS, EMS and Massager. This is best device in the market not only for professionals but also for home use.

• Great Configuration: Tens+EMS+Massager 3-in-1, dual channel maximum 120 mA 4 outputs, 22 programs (6 with adjustable Time, Frequency and Pulse Width), 8 reusable pads at the same time
• User-friendly: Easy to operate, programs commonly used for almost all body parts, large white backlit screen with eye protection
• Simple &Professional: Simple–Start treatment with at least 3 steps. Professional–Meet professional requirements for treatment time, pulse width, frequency. Effective for back pain, knee pain, shoulder pain etc.
• Considerate Design: Portable, Small and Convenient, feels good, easy to carry, can be used in all kinds of life scenes.
• Safe and Affordable: FDA approved, supported by multiple clinical data, equipped with 8 pads, pair of 4-pin wire and pair of 2-pin wire to meet daily needs

Specifications about the Pre-set and Adjustable Programs

• The pre-set programs are professionally designed to meet the daily treatment needs of almost all parts of the body. No matter which part of your body is going to take the therapy, just use the default program or press the [P] button to select the program that you feel the most comfortable with. You can also refer to the manual for more details.
• The default time of each pre-set TENS/EMS program is 30 min and you can customize it to max 90 min by the following steps.
• For users who require a customized treatment time, pulse width and frequency, or a recommended professional treatment program by doctors, you can customize your own configuration by:
• 1) Turn on the device, press [M] button to choose the mode from TENS, EMS and MASSAGER and press [P] button to choose the programs you want to customize.
• 2) For P1-P6 in TENS mode and P1-P5 in EMS mode, the Time is adjustable. Just press and hold [P] buttons for 3 seconds and then press the [+/-] button to set the specific value of time. Press [M] button to confirm.
• 3) For U1-U3 in TENS mode and U1-U3 in EMS mode, the Frequency, Pulse Width and Time are adjustable. Just press and hold [P] buttons for 3 seconds to enter the setting interface, press the [P] button to switch the setting options from the Frequency(20-100 Hz), Pulse Width(100-300 us) and Time(5-90 min). Then press the [+/-] button to set the specific value. You can then continue press [P] button to switch the setting options and [+/-] button to set the value. Finally press [M] button to confirm.
• 4) Pleased be noted that ALL 5 programs in MASSAGE mode are NOT adjustable and the default time is 30 min.
